Kejuruteraan Wang Yuen Sdn. Bhd. is a wholly Malaysian-owned engineering company established in 1973. For over 50 years, we have developed a strong focus in manufacturing machinery within the palm oil milling industry and is licensed by the Department of Occupational Safety and Health (DOSH) to manufacture and supply Unfired Pressure Vessels and Quick Opening Clutch Doors.

Our operations emphasize precision engineering, regulatory compliance, and long-term reliability. Through continuous improvement and adherence to international best practices, Kejuruteraan Wang Yuen Sdn. Bhd. remains committed to delivering products and services that meet the highest standards of performance, safety, and customer satisfaction.

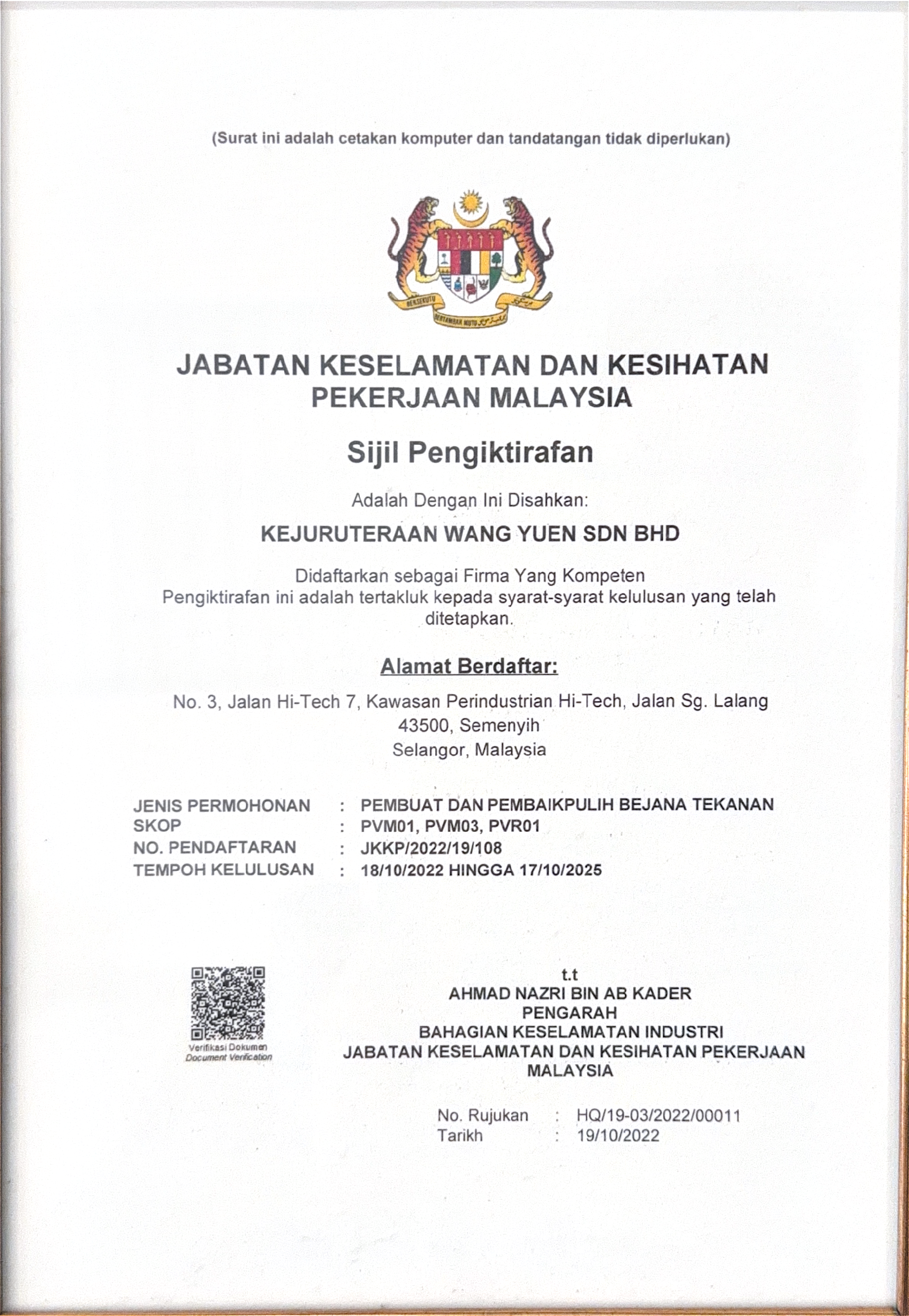

DOSH

Licensed Manufacturer

ISO 9001:2015

Certified Quality

CIDB G7

Registered Contractor

OUR COMPANY

FACTORY GALLERY

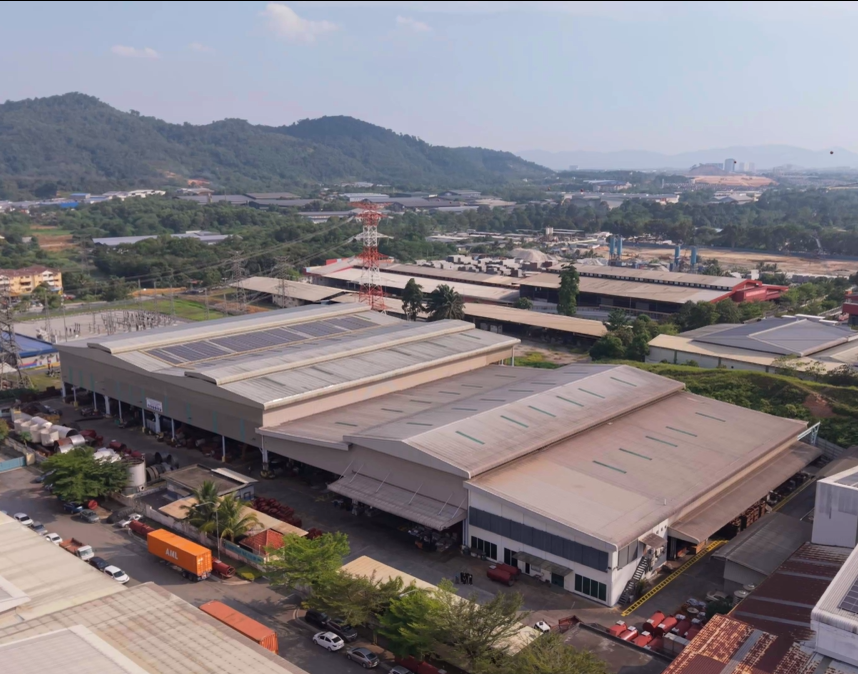

Wang Yuen factory facility in Semenyih, Selangor

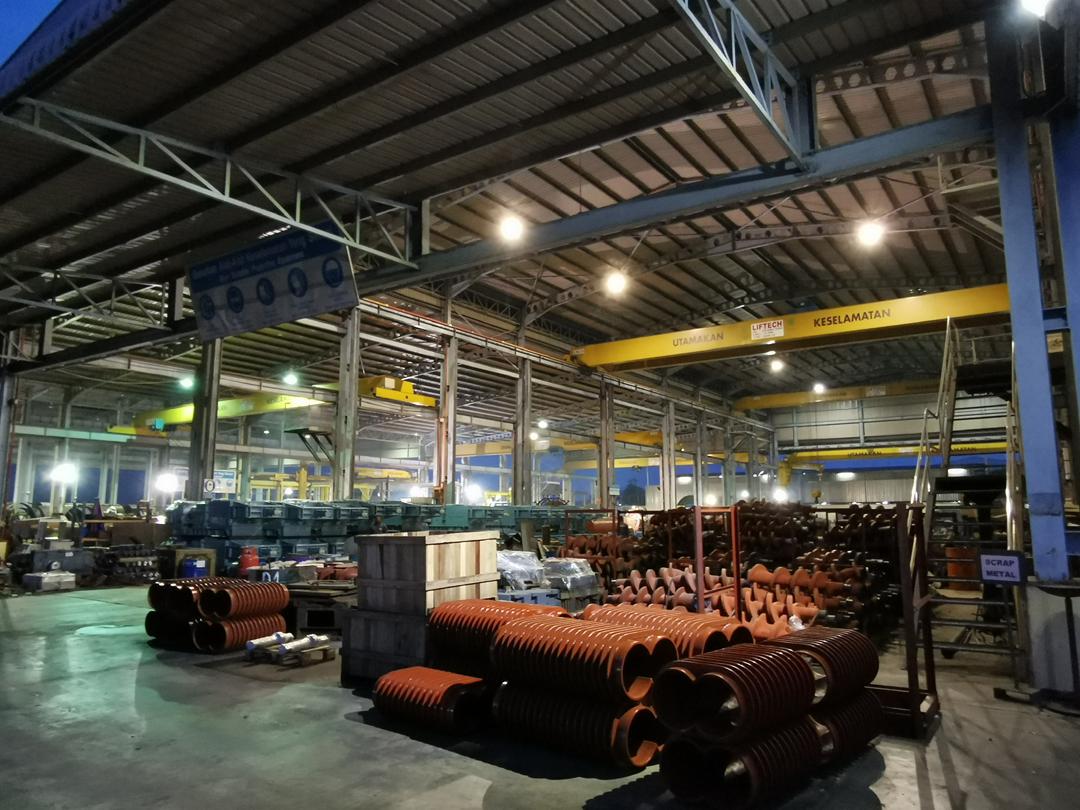

Factory interior with machinery and equipment

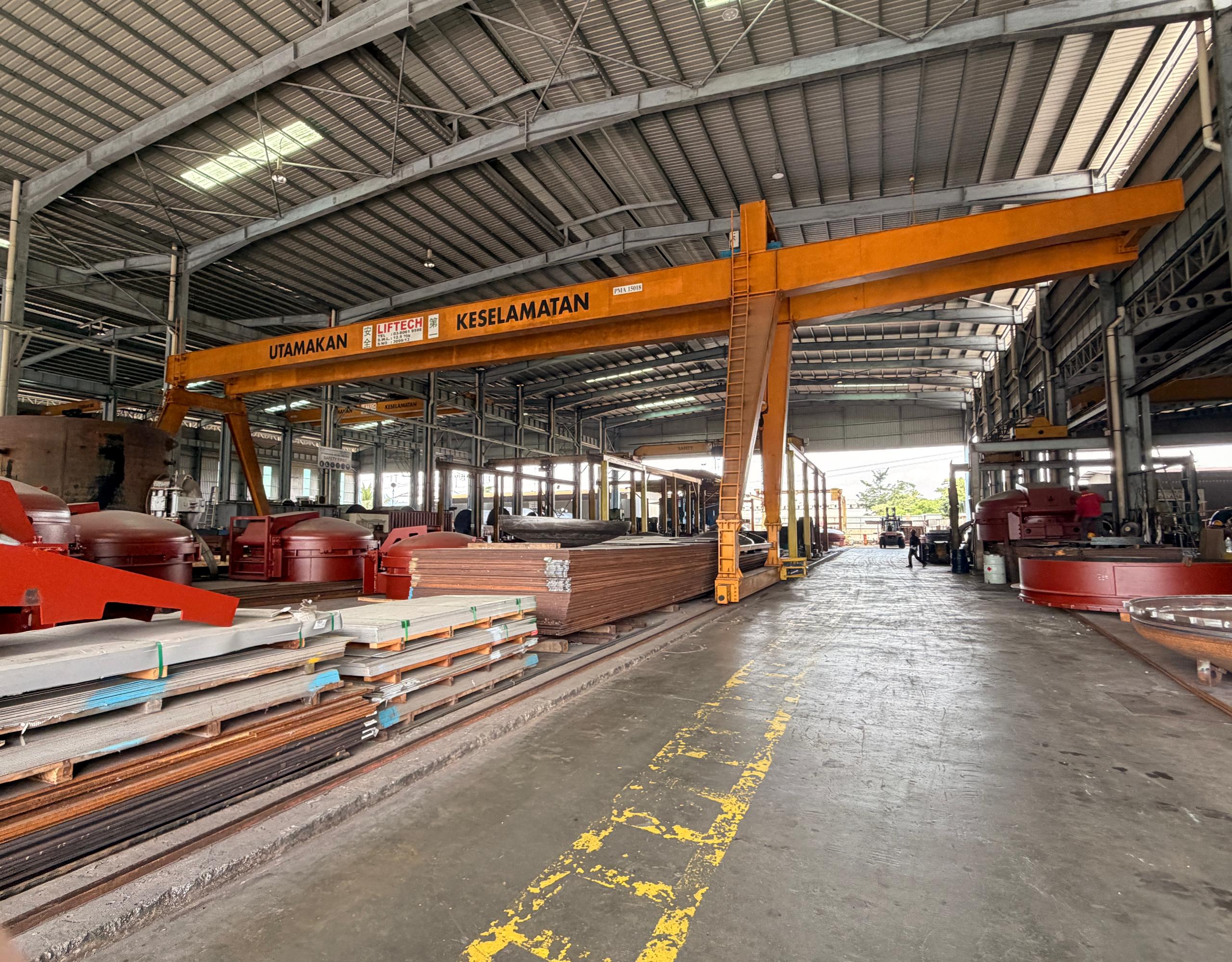

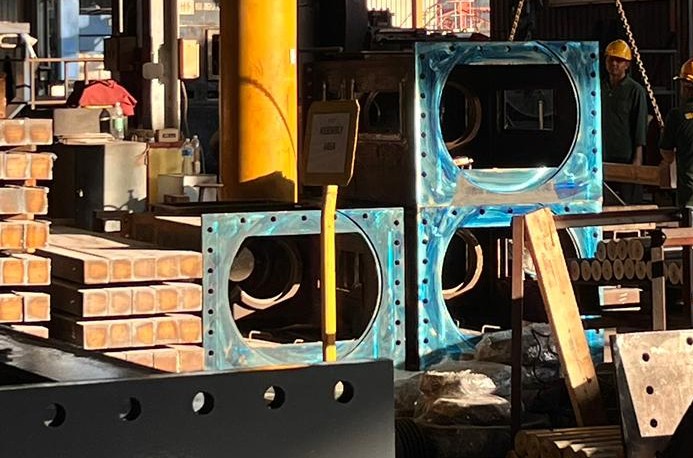

Manufacturing workshop with industrial fabrication

What We Make

OUR PRODUCTS

Our range of palm oil extraction and pressure vessels key to the palm oil milling process

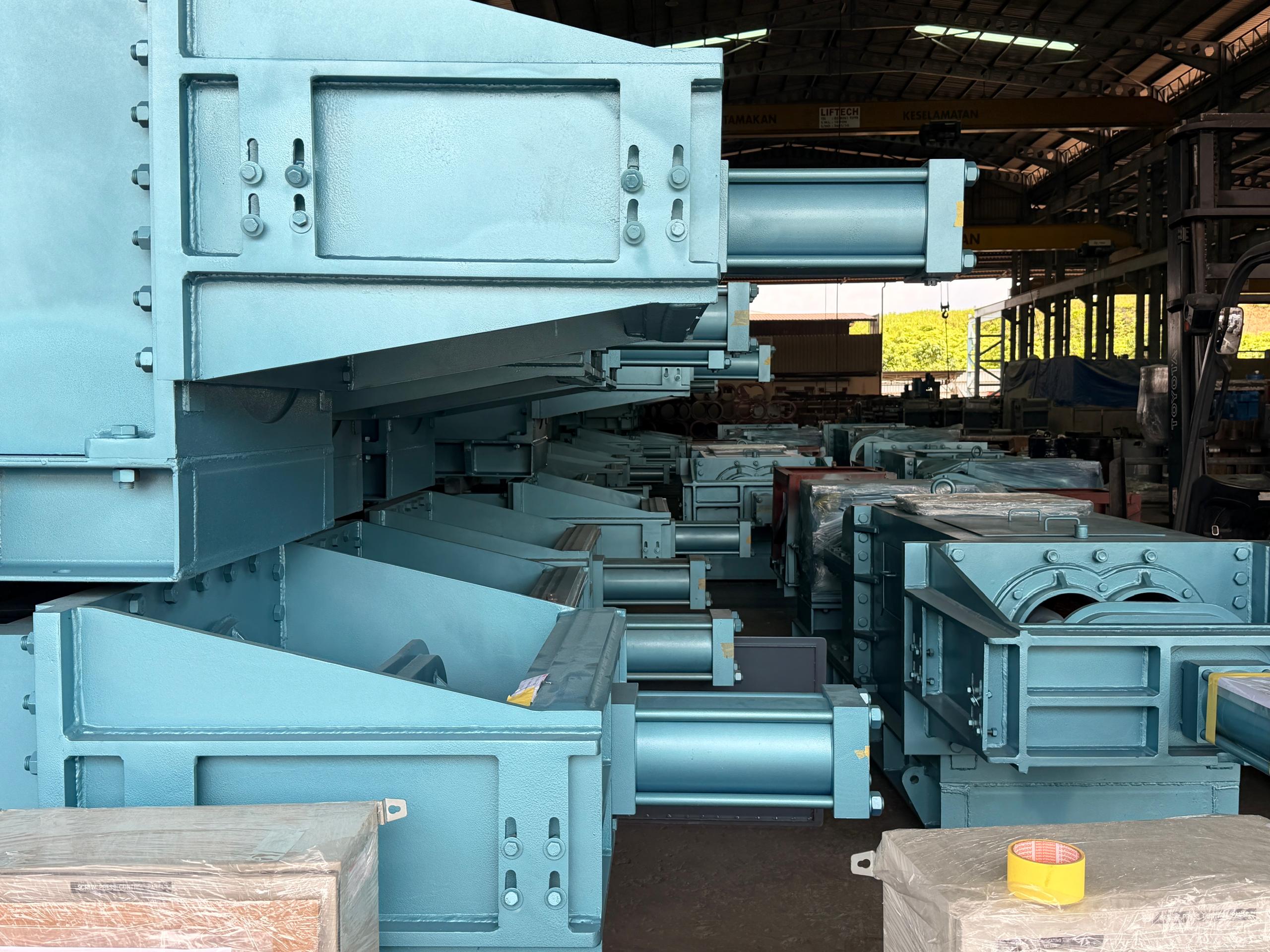

Screw Press

The Screw Press is used in the extraction of palm oil. It consists of four main components: the speed reducer — motor drive unit, the press spur gearbox, the press body, and the reaction cone section. All are mounted onto a steel base frame after proper alignment during assembly.

Available Sizes	P15 (15-17 tonnes/hour) and P20 (20-24 tonnes/hour)
Motor	40HP and 60HP
Oil Losses on dry matter	6 - 8 %
Nut Breakage	8 - 11%
Speed Reducer	SEW / SUMITOMO / PREMIUM STEPHAN

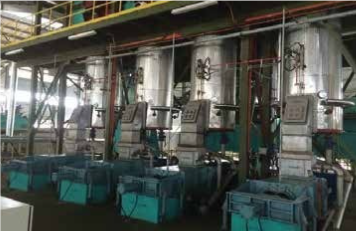

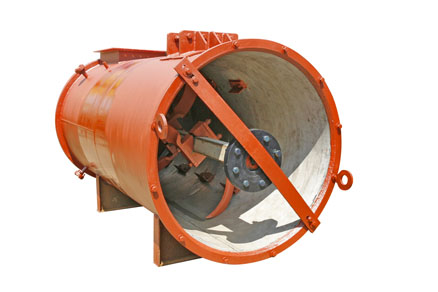

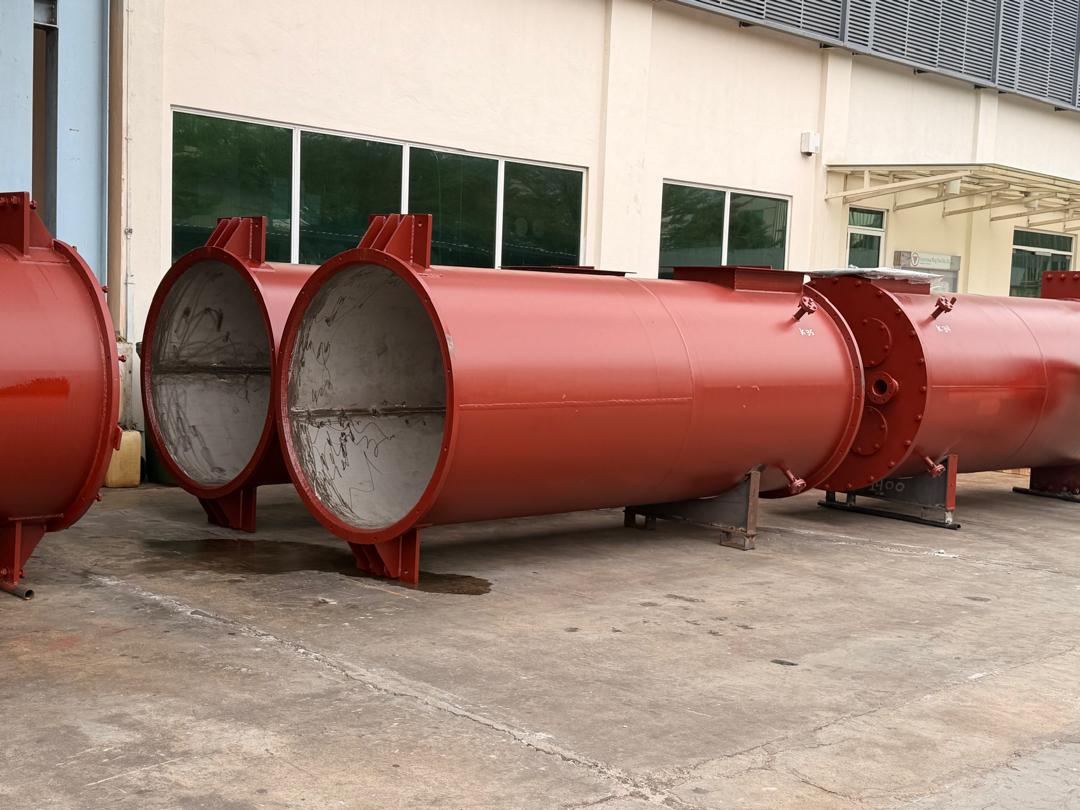

Digester

The Digester is a vessel in which stripped fruit is stirred and heated to suitable conditions for presses. It consists of a motor drive, connecting shaft, digester shell, and internal parts such as expeller arm, long arm, and short arm. Direct steam injection ensures precise temperature control.

Available Sizes	3500L to 6000L
Material	Mild Steel Plate
Liner	Stainless Steel
Motor	40 HP / 50 HP / 60 HP
Speed Reducer	SEW / SUMITOMO / PREMIUM STEPHAN

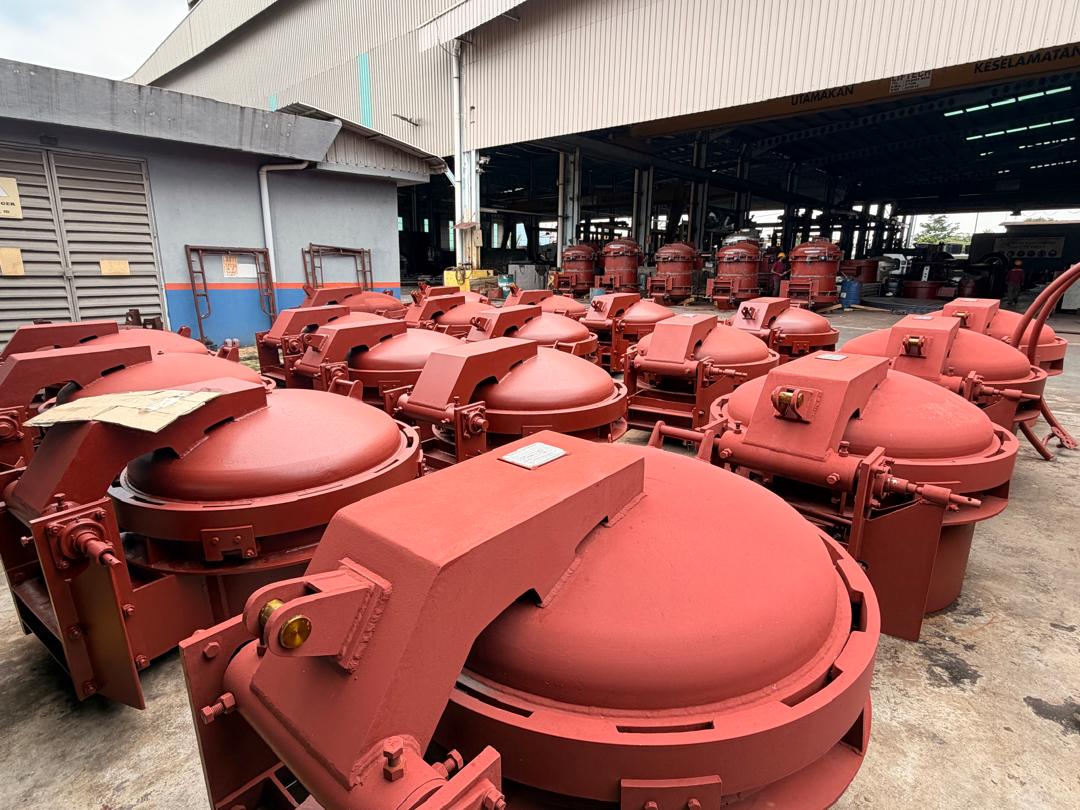

Sterilizer Door

The Sterilizer Door, also known as a quick open clutch door, features a unique design for quick and safe operation. Door sizes are customisable able to fit into existing sterilisers and can be fitted for manual or hydraulic operation.

Type	Quick Opening Clutch Door

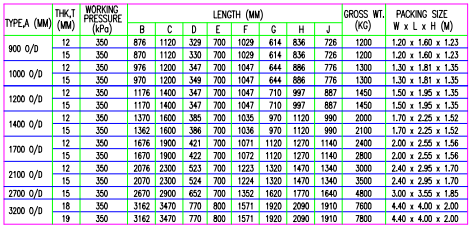

Sizes	900 O/D MM - 3200 O/D MM
Application	Palm Oil Mill Sterilizer
Approval	DOSH Malaysia

Vertical Sterilizer

The Vertical Sterilizer is a critical component in the palm oil milling process, designed for efficient sterilization of fresh fruit bunches. Built to DOSH standards as an unfired pressure vessel, it ensures safe and reliable operation under high-pressure steam conditions.

Type	Vertical Unfired Pressure Vessel
Design Code	ASME SECT. VII DIV 1 2023
Capacity	15T, 20T, 25T and 30T
Shell and Dish End	15MM Boiler Plate SA.516 / S. Steel SA.240
Liner	Mild Steel / Boiler Plate / Stainless Steel
Approval	DOSH Malaysia

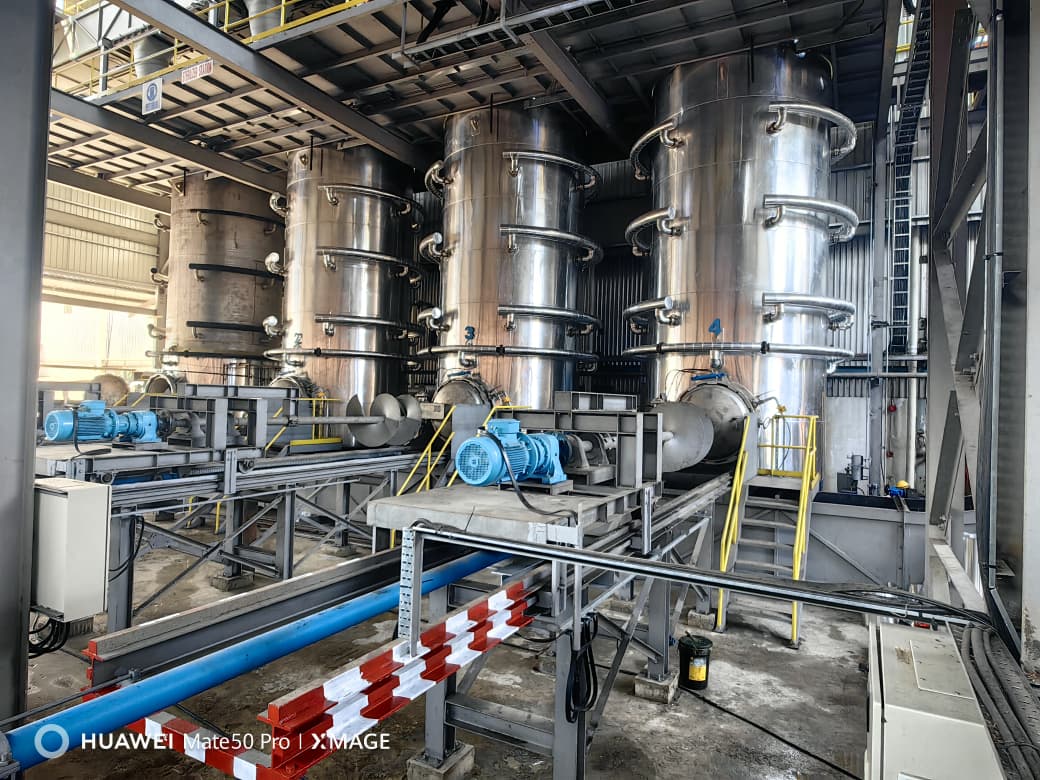

Vertical Sterilizer External Auger Completed Installation

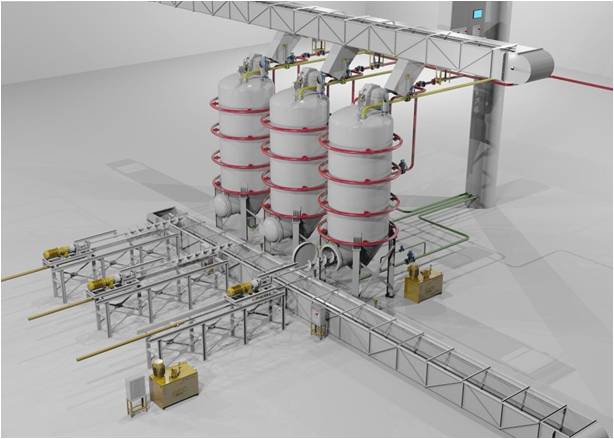

Vertical Sterilizer External Auger Drawing

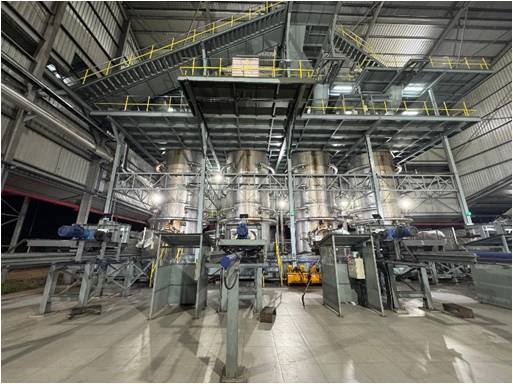

Vertical Sterilizer External Auger Installed

Support & Maintenance

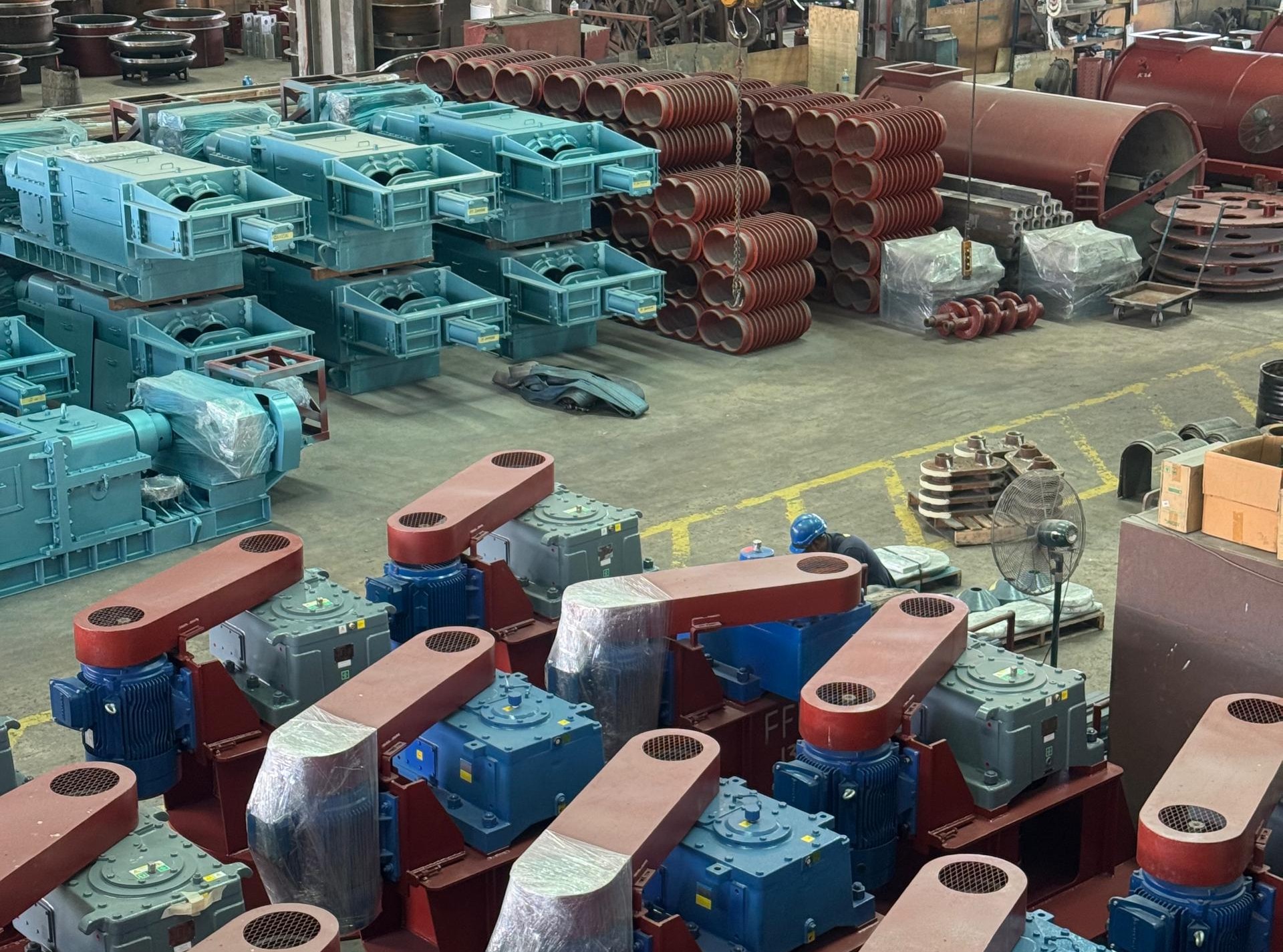

SPARE PARTS

KWY maintains a wide range of genuine spare parts, readily available to keep your operations running smoothly.
