ABOUT US

KEJURUTERAAN WANG YUEN SDN BHD is a solely owned Malaysian company which was started in 1973. We are a licensed manufactured for UNFIRED PRESSURE VESSEL AND QUICK OPENING CLUTCH DOOR under approval of the Department of Occupational Safety and Health, Malaysia.

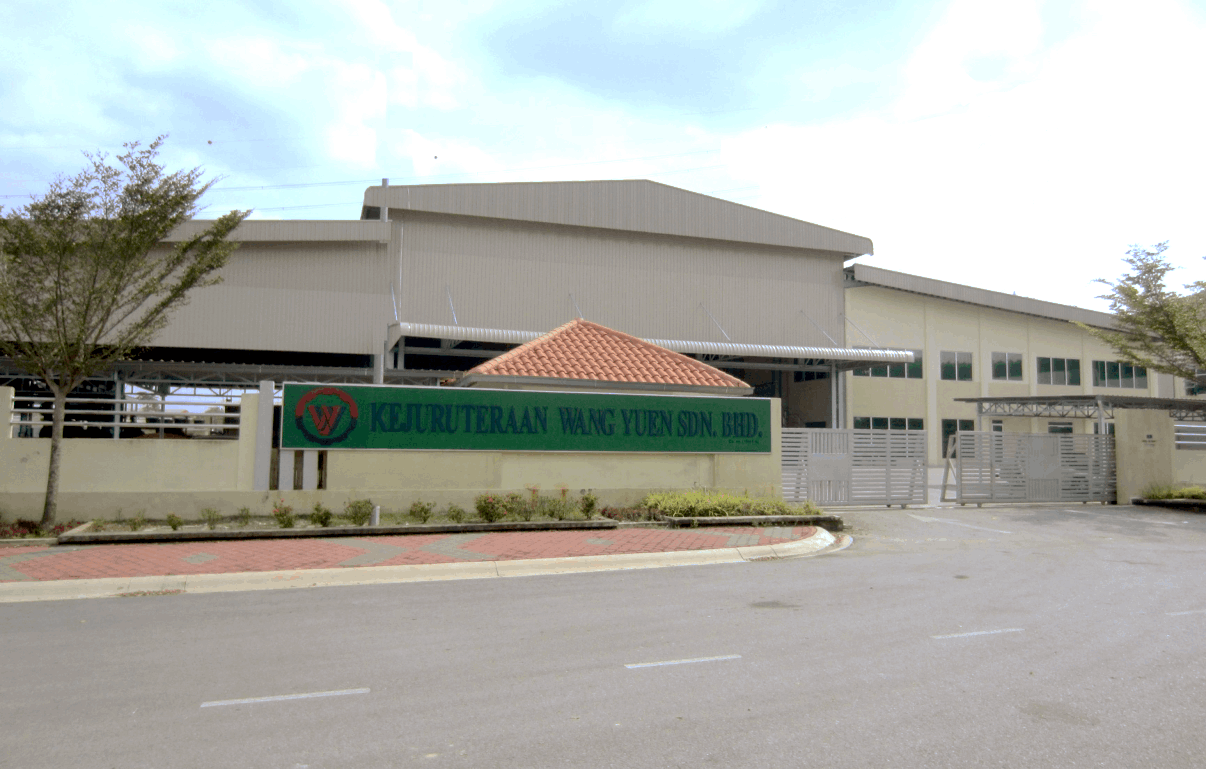

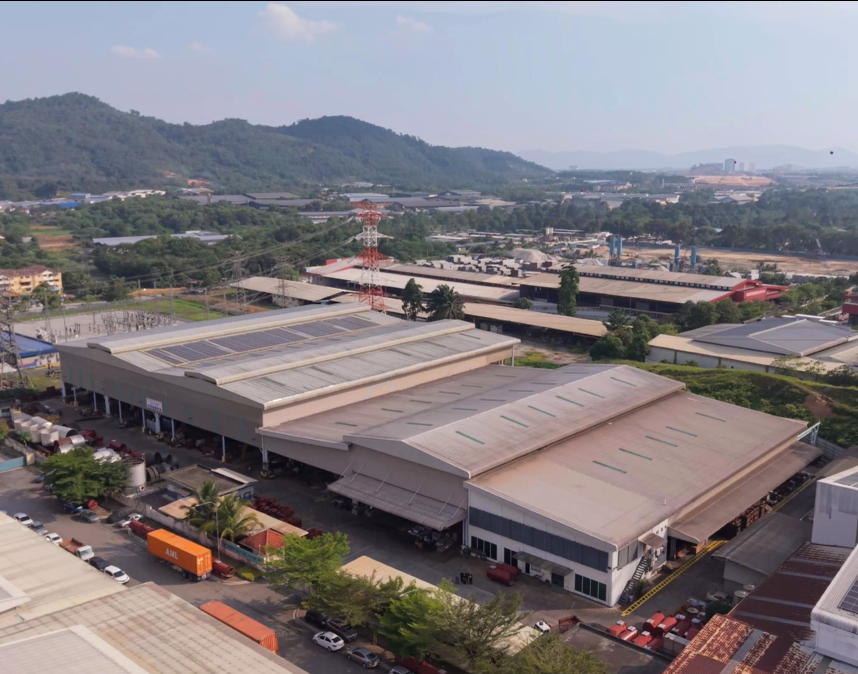

Factory Address
KEJURUTERAAN WANG YUEN SDN BHD
No. 3 Jalan Hi-Tech 7,
Kawasan Perindustrian Hi-Tech,
Jalan Sungai Lalang,
43500 Semenyih
Selangor Darul Ehsan, Malaysia

OUR PRODUCTS

There are variety of products we manufacture.

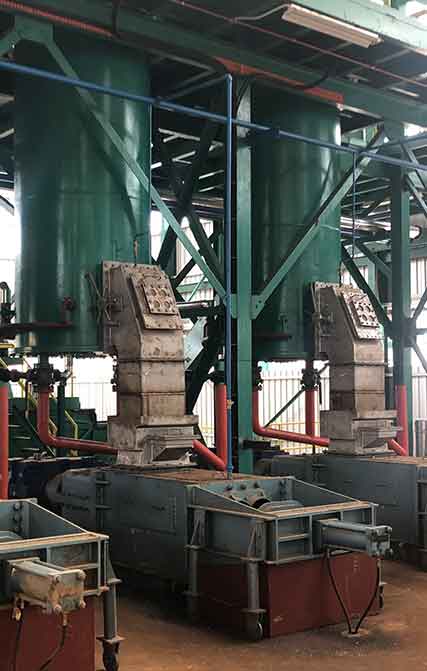

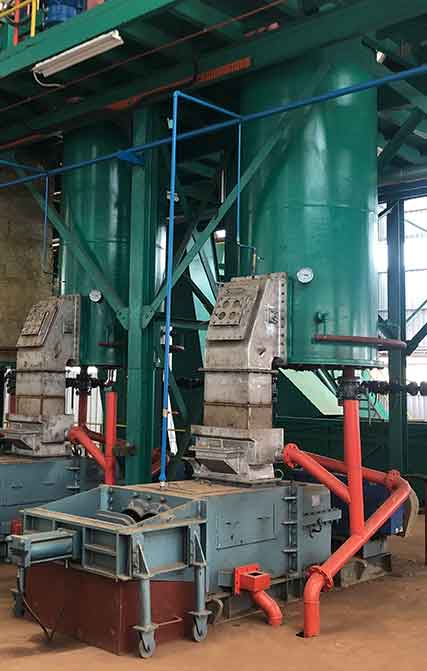

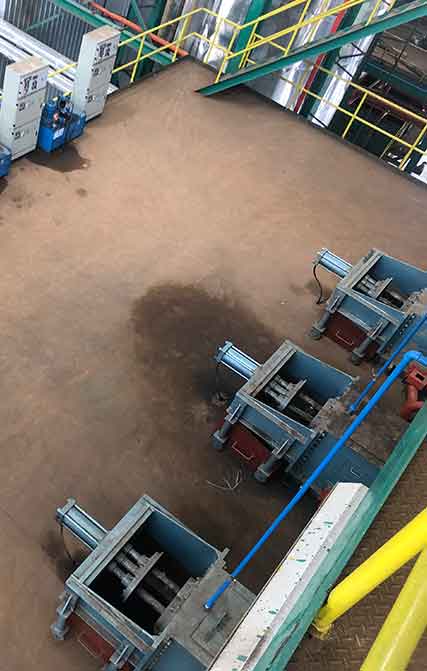

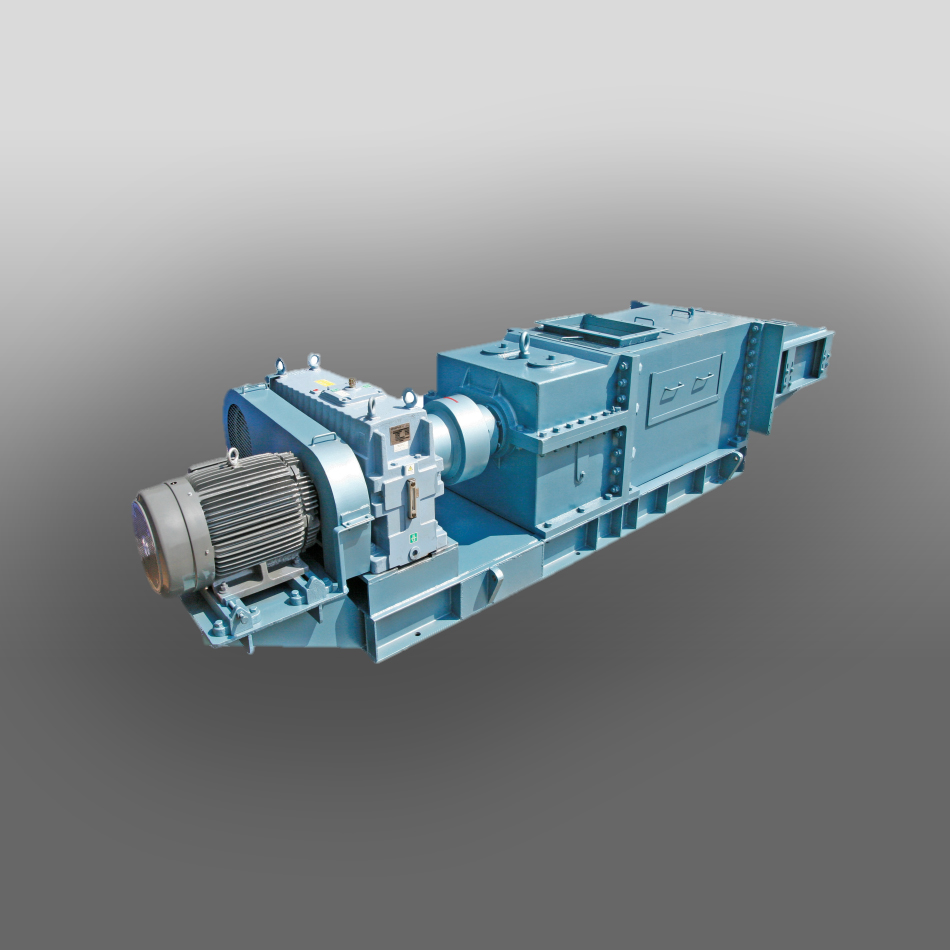

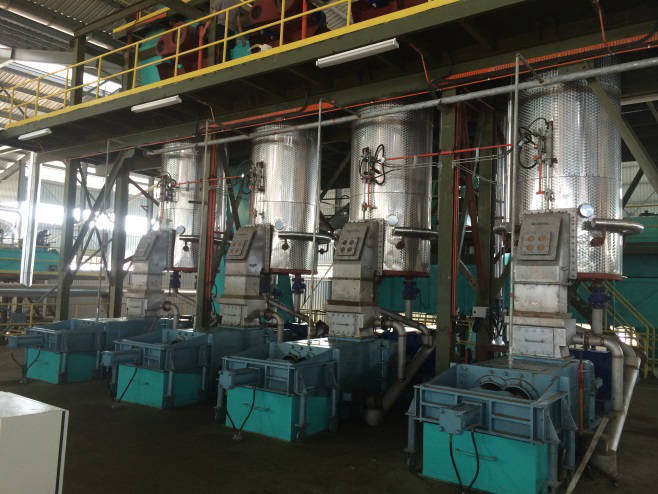

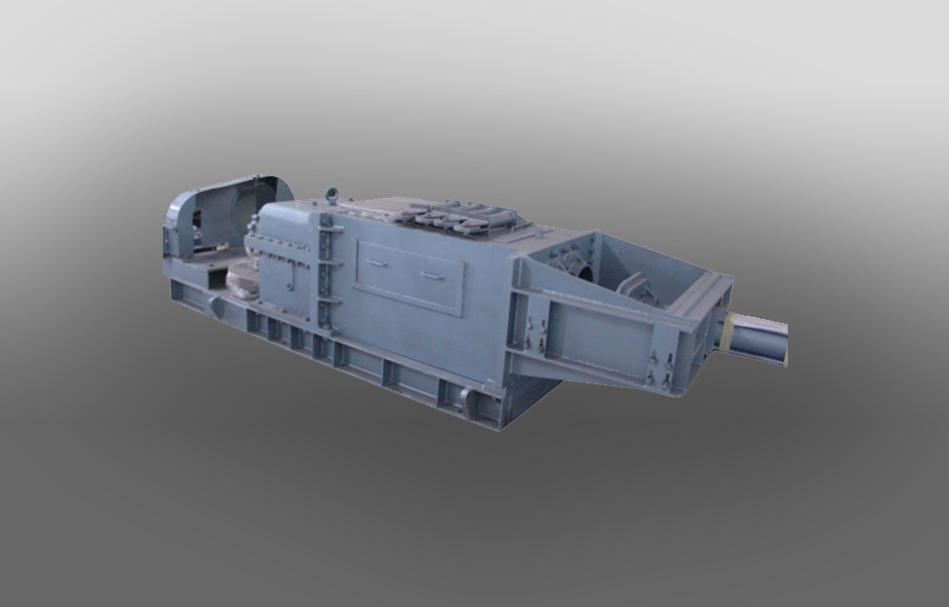

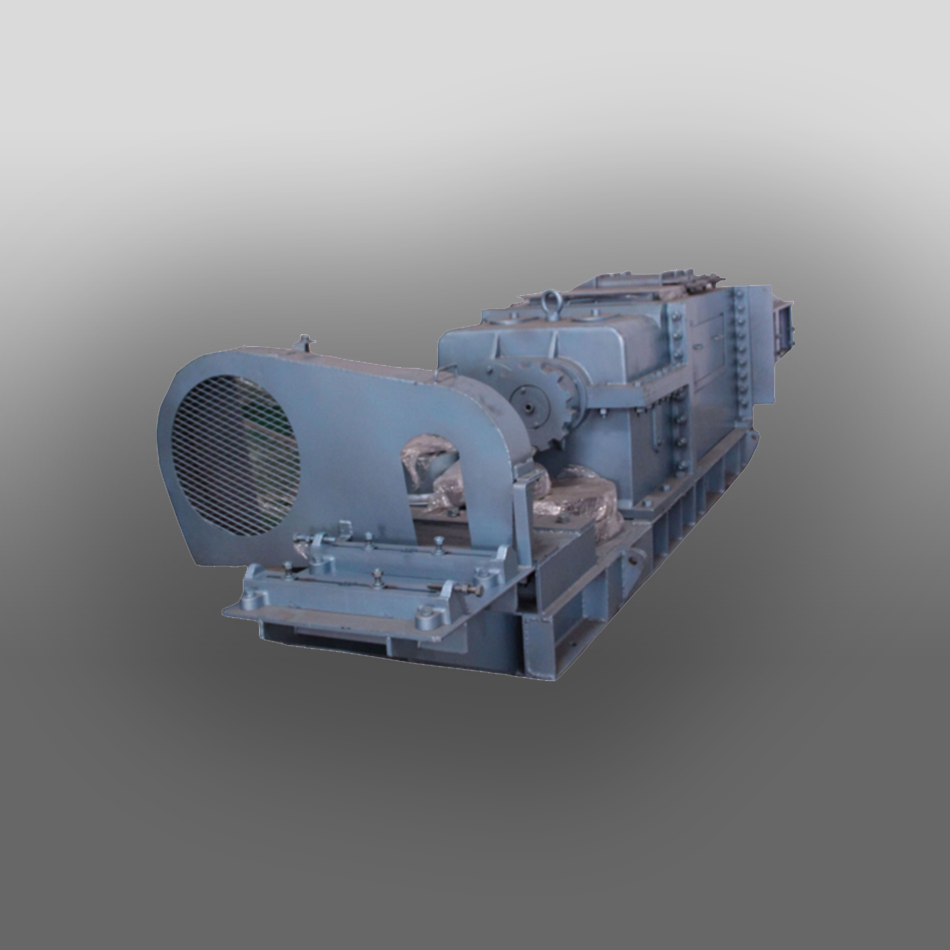

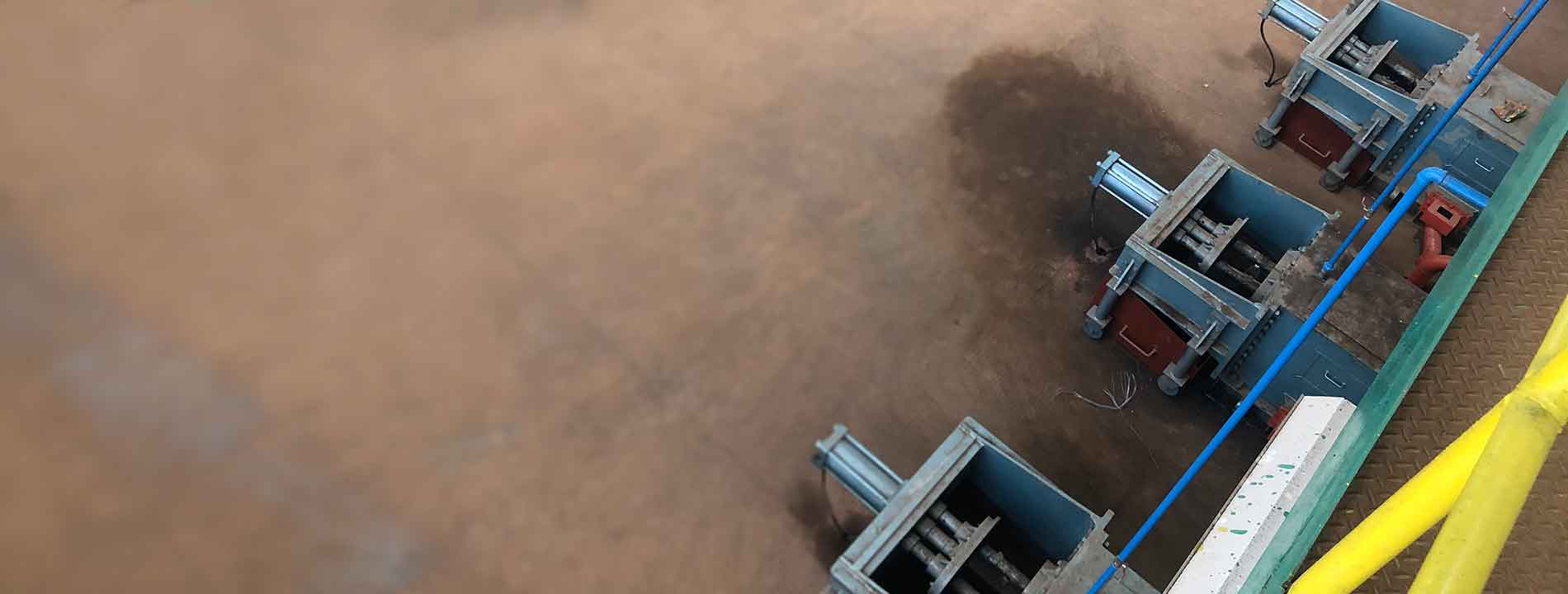

Screw Press

Screw Press is for use in the extraction of palm oil. Basically, the screw press consists of four main components : the speed reducer - motor drive unit, the press spur gearbox, the press body and the reaction cone section. They are all mounted onto a steel base frame after proper alignment of those sections during assembly of the machine.

screwpress

TECHNICAL SPECIFICATIONS

Available Sizes : P15 and P20
Motor : 40HP and 60HP
Speed Reduce : SEW / SUMITOMO / PREMIUM STEPHAN, ETC
Huydrolic Control : EATON / REXROTH / DOLPHIN / DAS, ETC.
screwpress
screwpress

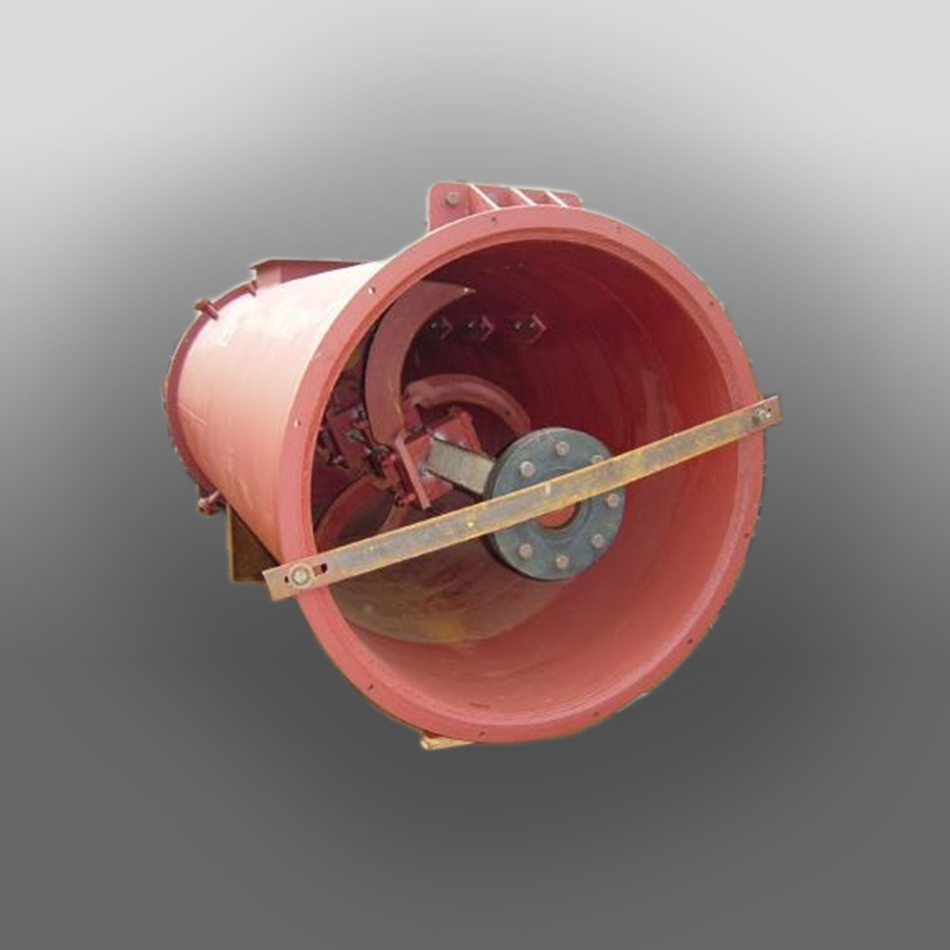

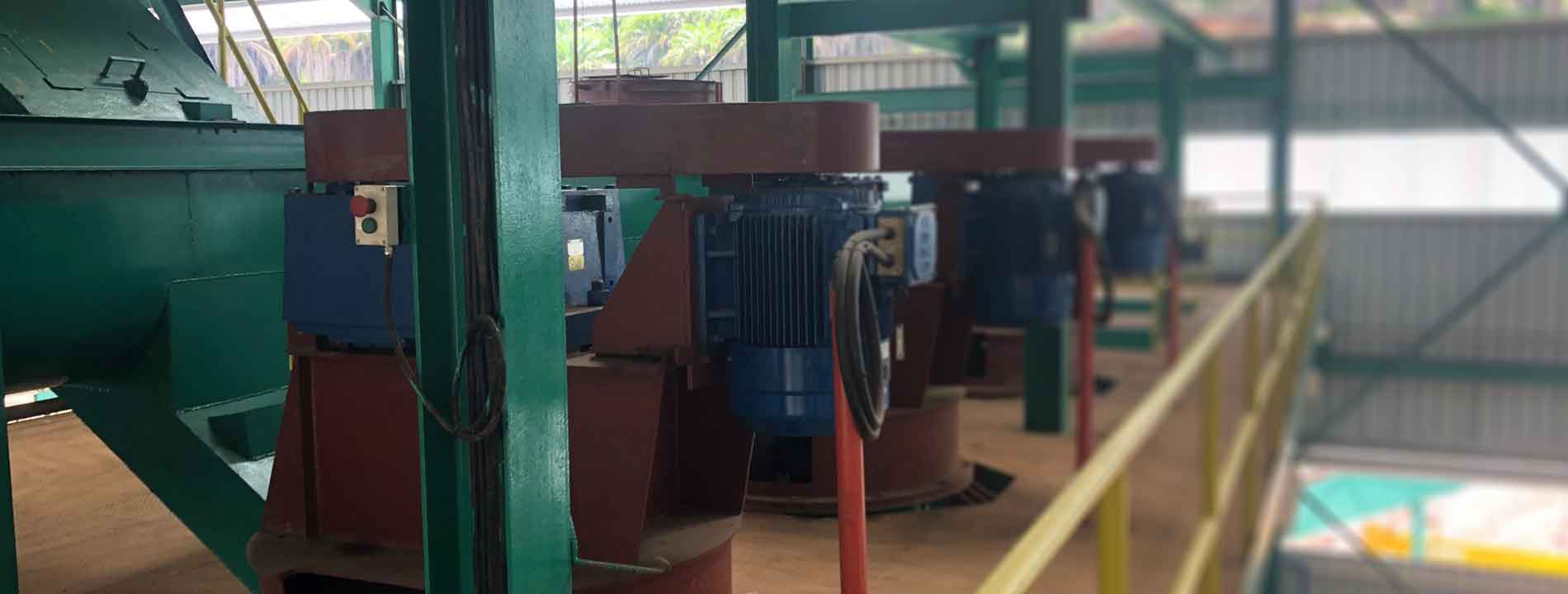

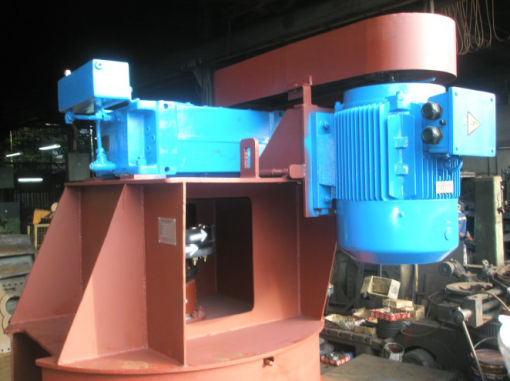

Digester

Digester is vessel in which the stripped fruit is stirred and heated to the suitable condition for presses. Basically, the digester consists of motor drive, connecting shaft, digester shell and internal parts such as expeller arm/long arm/short arm. The Digester is injected with steam directly for better temperature control.

digester

TECHNICAL SPECIFICATIONS

Available Sizes : 3500L to 6000L
Material : Mild Steel Plate
Liner : Stainless Steel
Motor : 40 HP / 50 HP / 60 HP
Speed Reducer : SEW / SUMITOMO / PREMIUM STEPHAN
Wangyuen
Wangyuen

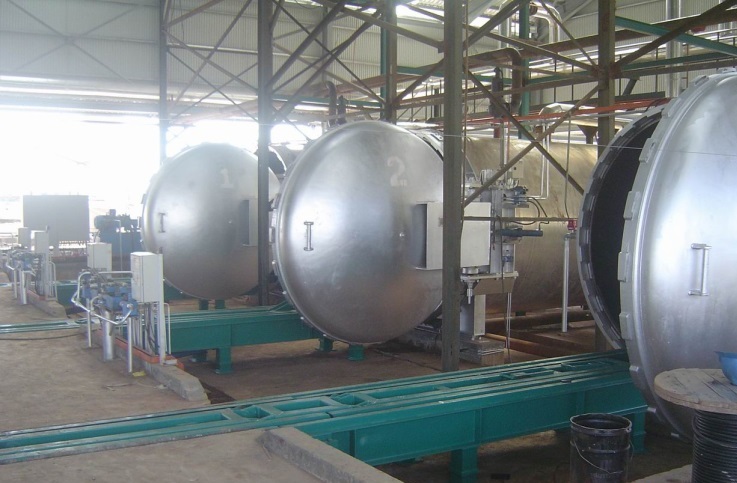

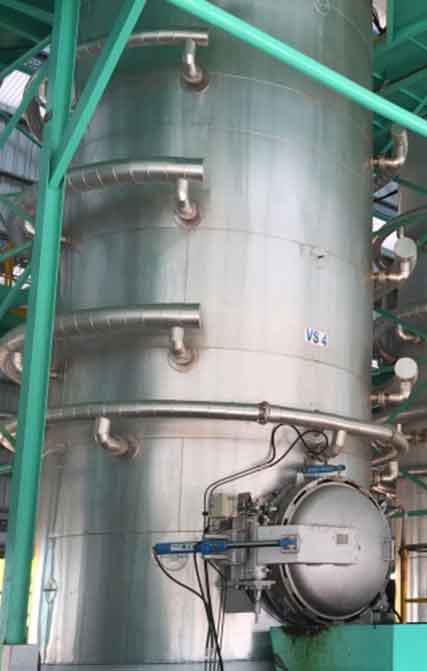

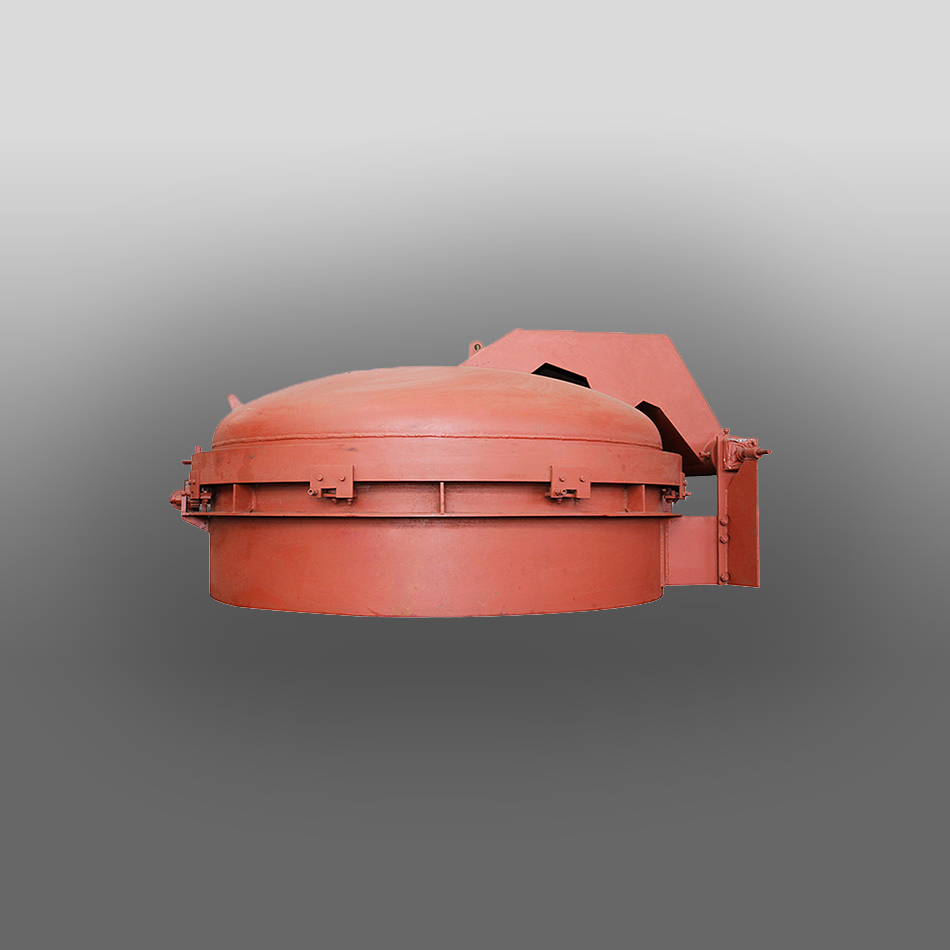

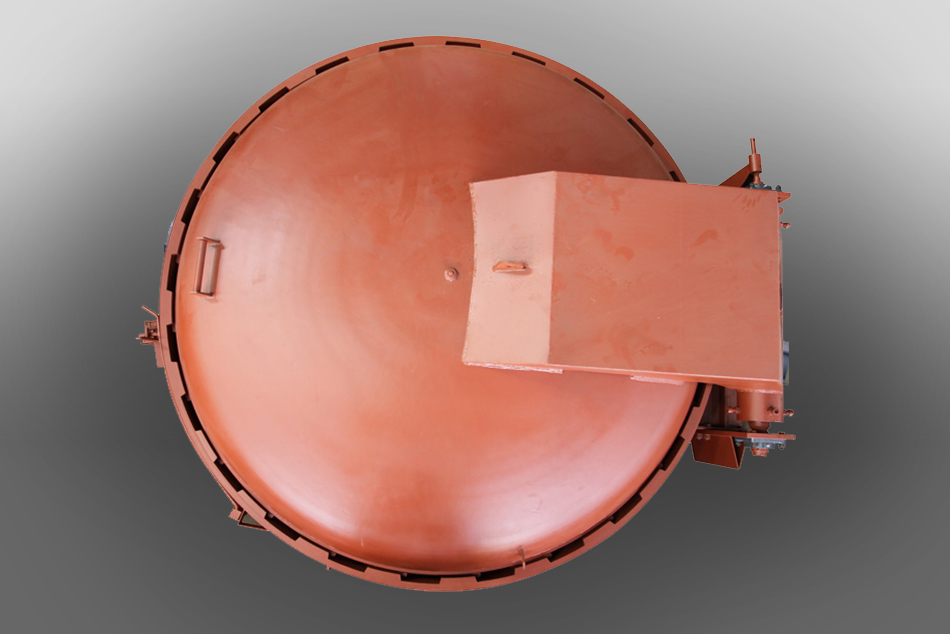

Sterilizer Door

Sterilizer Door also known as quick open CLUTCH door with its unique design caters for quick and safe operation. The Clutch Door is suitable for palm oil mill sterilizer, tyre valcunizer, impregnation vessel in timber industry, and autoclaves in other industries.

sterilizer-door
sterilizer-door
sterilizer-door

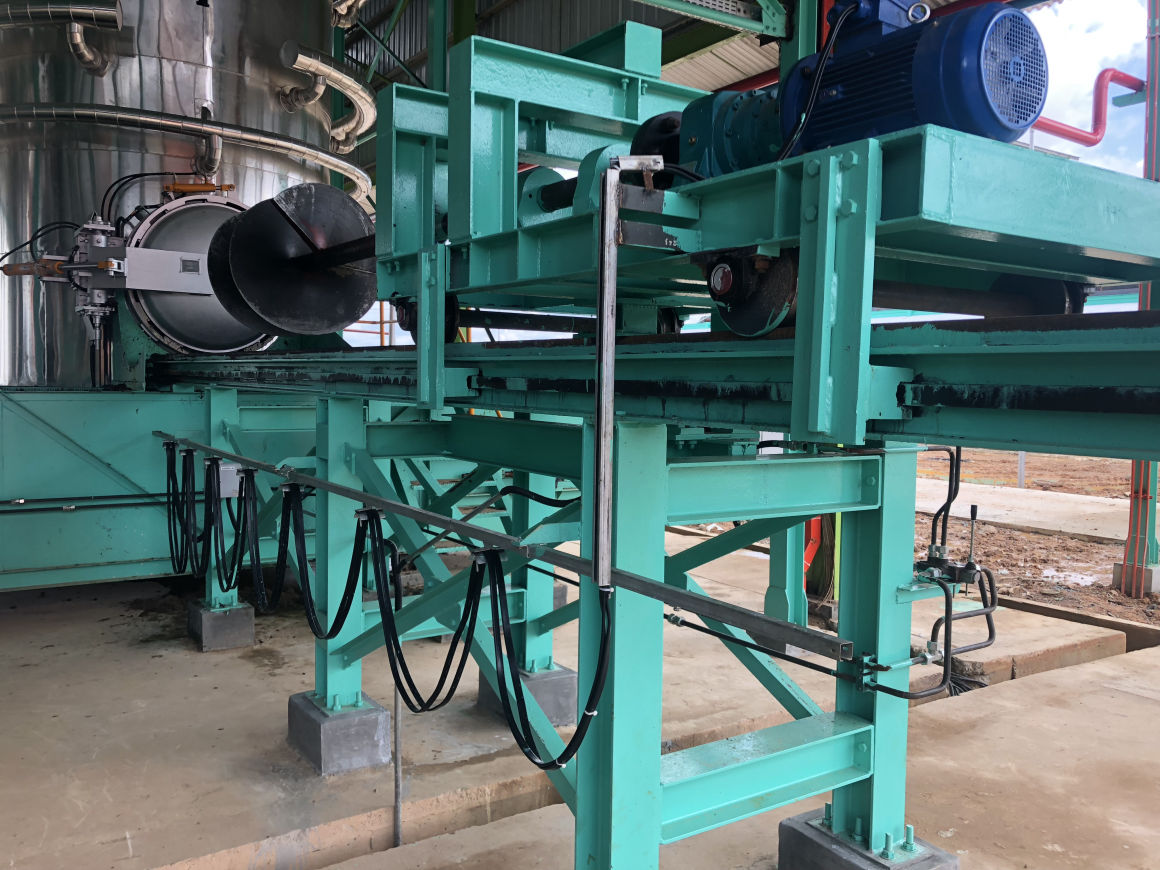

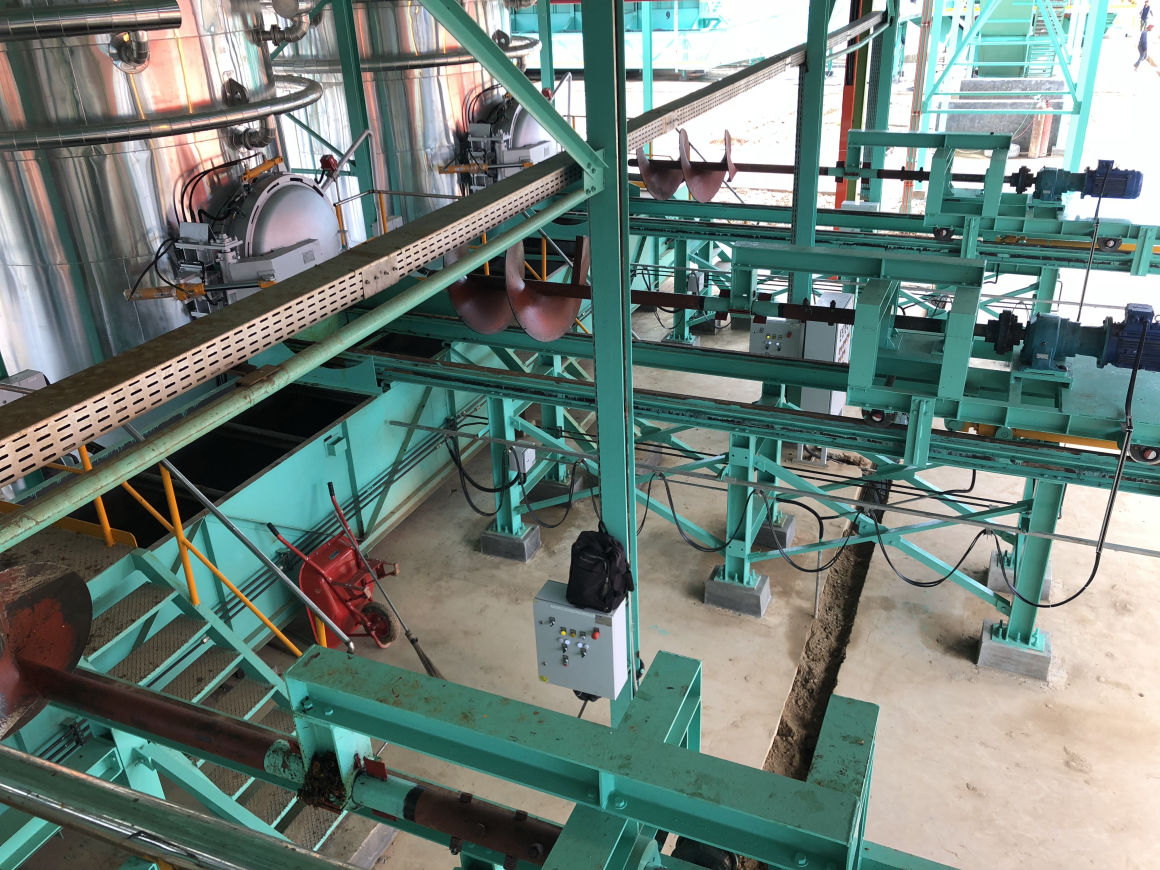

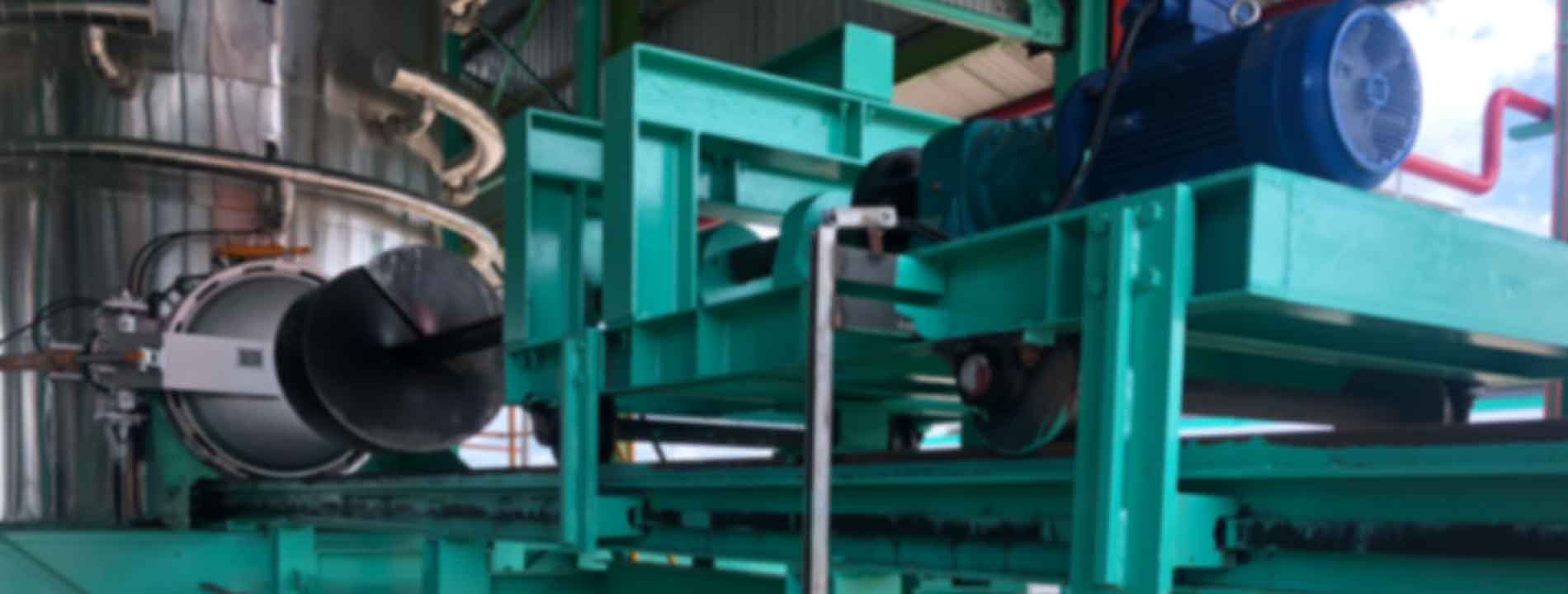

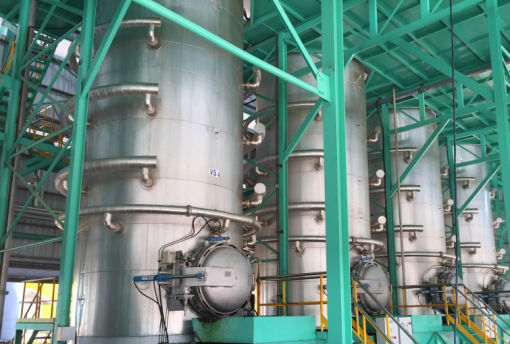

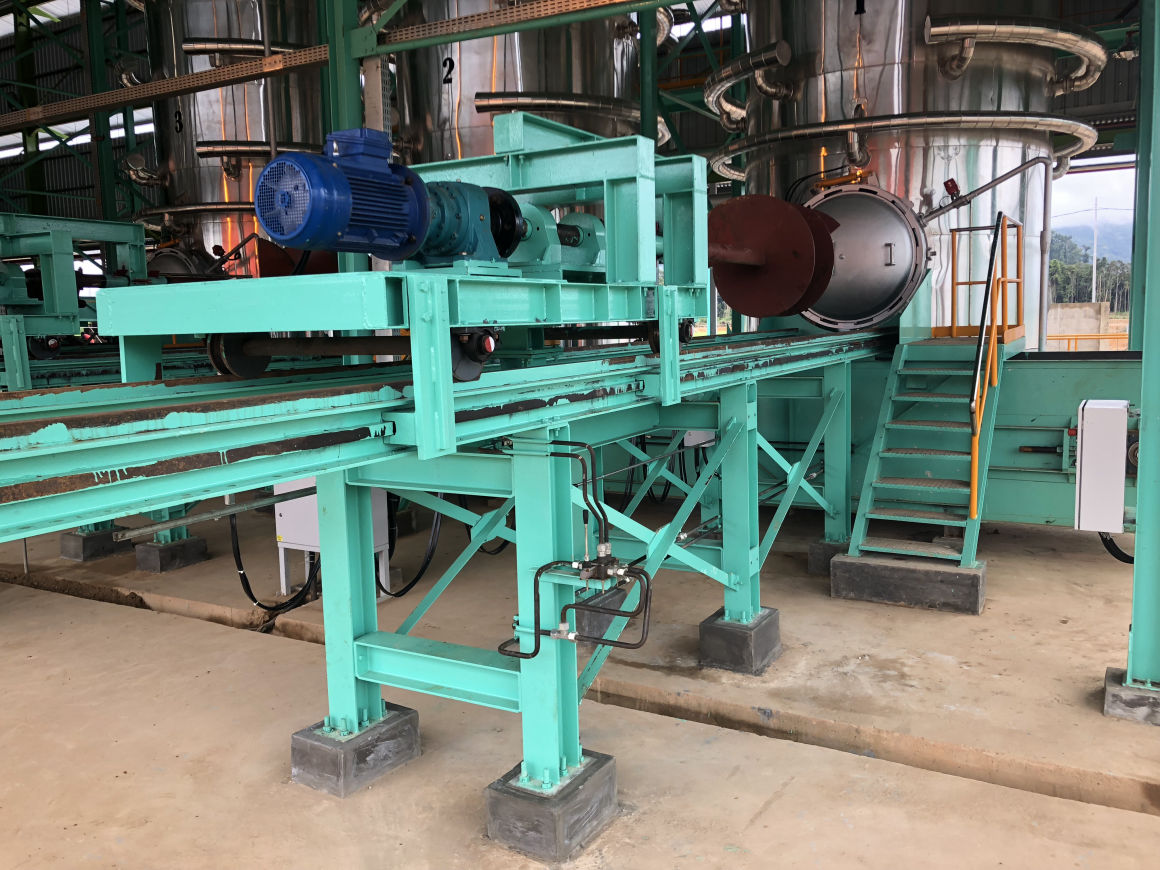

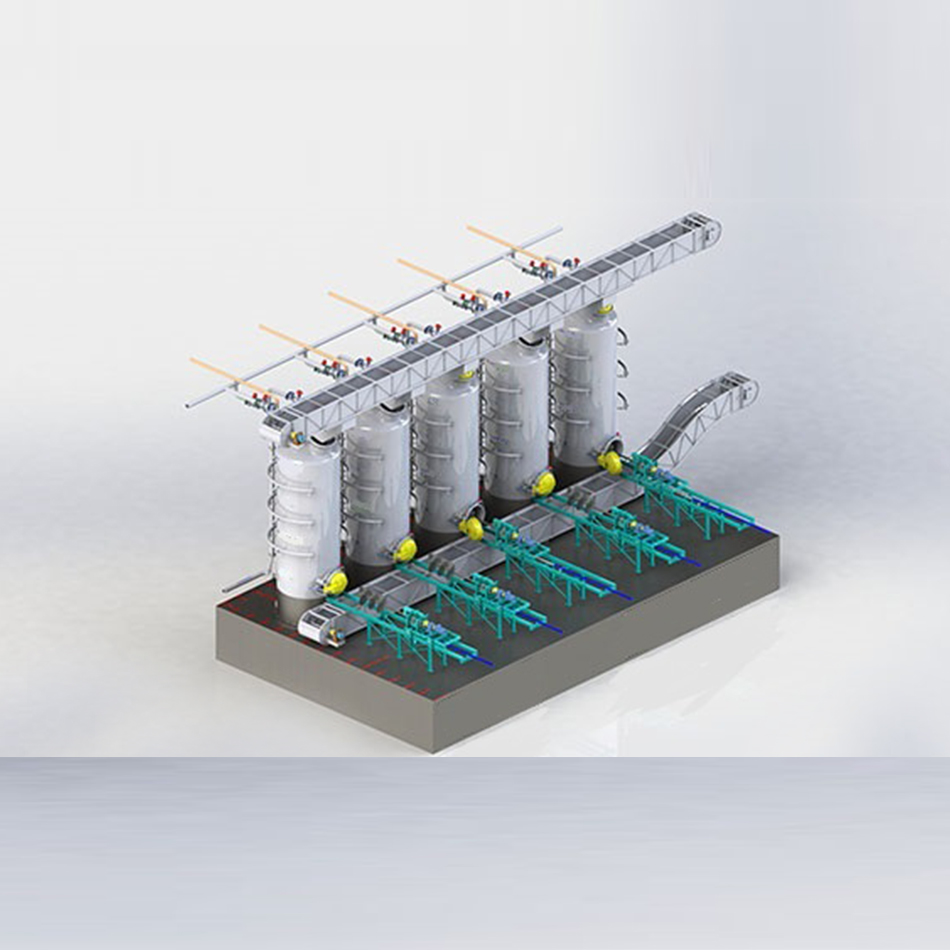

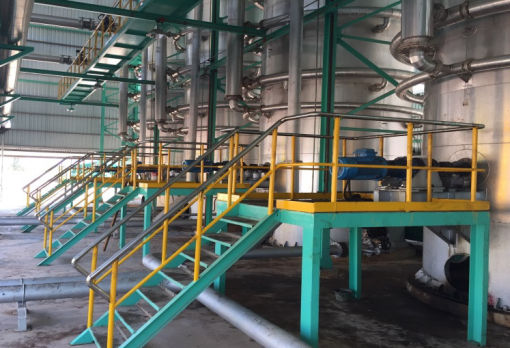

Vertical Sterilizer

The pressure vessel used for cooking palm fruit with steam is know as a Sterilizer. Wang Yuen Sterilizer is made of either Boiler Plate or Stainless Steel Plate.
Vertical Sterilizer is one of major section in palm oil mill, our expectation for our quality is come from the material, which is have a shell plate, liner plate, controller and accessories.
Both type of plates are imported from Japan for the Vertical Sterilizer fabrication under proper quality control.

vertical-sterilizer

TECHNICAL SPECIFICATIONS

Features : Internal Auger / External Auger
Available Sizes : 20T, 25 TFFB
Material : Boiler Plate / Stainless Steel
Liner : Stainless Steel
Working Pressure : Up to 3.5 bar
vertical-sterilizer
vertical-sterilizer
